Equipment needed: Hum Eliminator, XLR cabling, 2x 1/8” to 1/4” adapters.
-
If the sound board contains a label along the bottom already, use it as closely as possible. Sound operators are welcome to create their own labels if they wish, using a piece of white gaffer’s tape (get from scoring table).
-

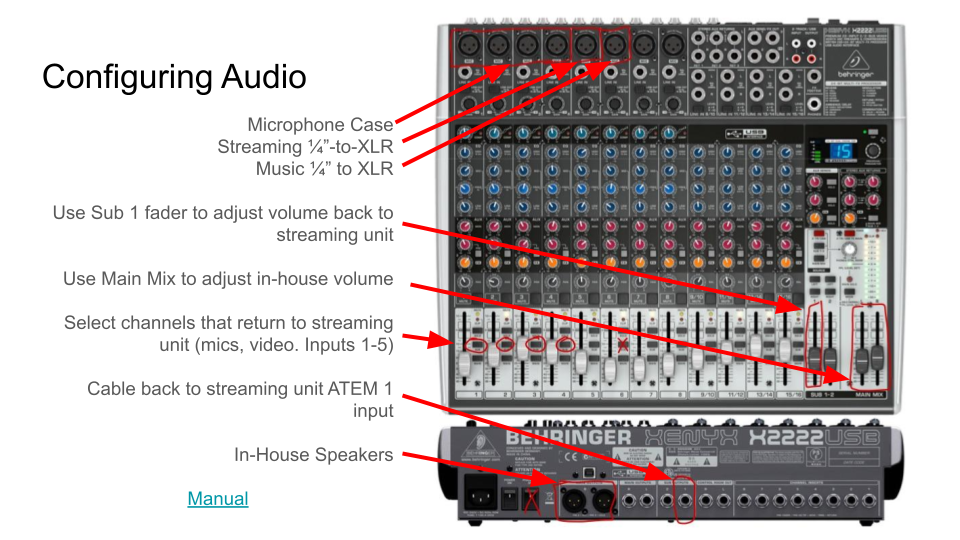

Use the diagram below to guide the plug-in and configuration of the sound board.
Sound Board Manual -
Attach the cable coming from the Sub 1 audio output to the input of one of the Hum Eliminator’s channels.
-
Attach the output of the Hum Eliminator to the Streaming Unit. Follow the instructions below to determine how to connect to the computer. The following steps are a temporary workaround to an issue with the ATEM.
-
connect a 1/4” to 1/8” cable (available in the Streaming Unit drawers or the Audio A/V tote) to the Line Input jack of the computer in the Streaming Unit.
-
