Equipment needed: Chesapeake Router, A/V power strip, Ethernet roll/spool, short Ethernet cable, long Ethernet cable.
-

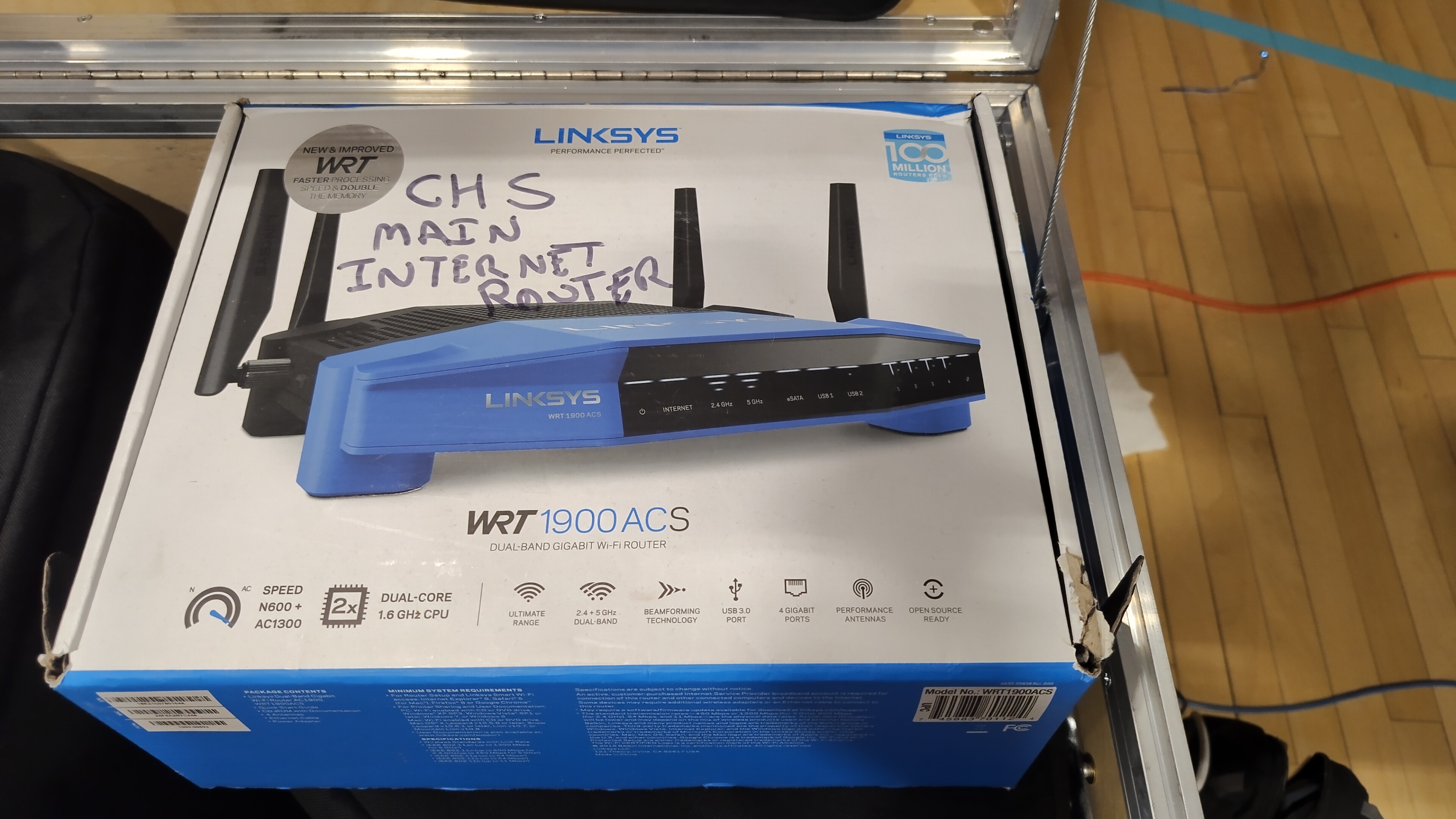

Locate the Chesapeake Router box. It will be located in the A/V equipment in Case 26 and is a blue Linksys router.
-
Locate an A/V power strip. It will be located in the AV tote marked Power.
-
Plug the Linksys router power adapter into one of the outlets of the power strip, which is plugged into the bottom of the Streaming Unit.
-
Retrieve the Ethernet roll. It will be located in the AV tote marked Ethernet (large spool).
-
If venue Ethernet has not been located, work with Equipment Manager and/or venue personnel to locate. Run cable from venue location to Streaming Unit.
-
Plug venue Ethernet into “Internet” port on Chesapeake Router.
-

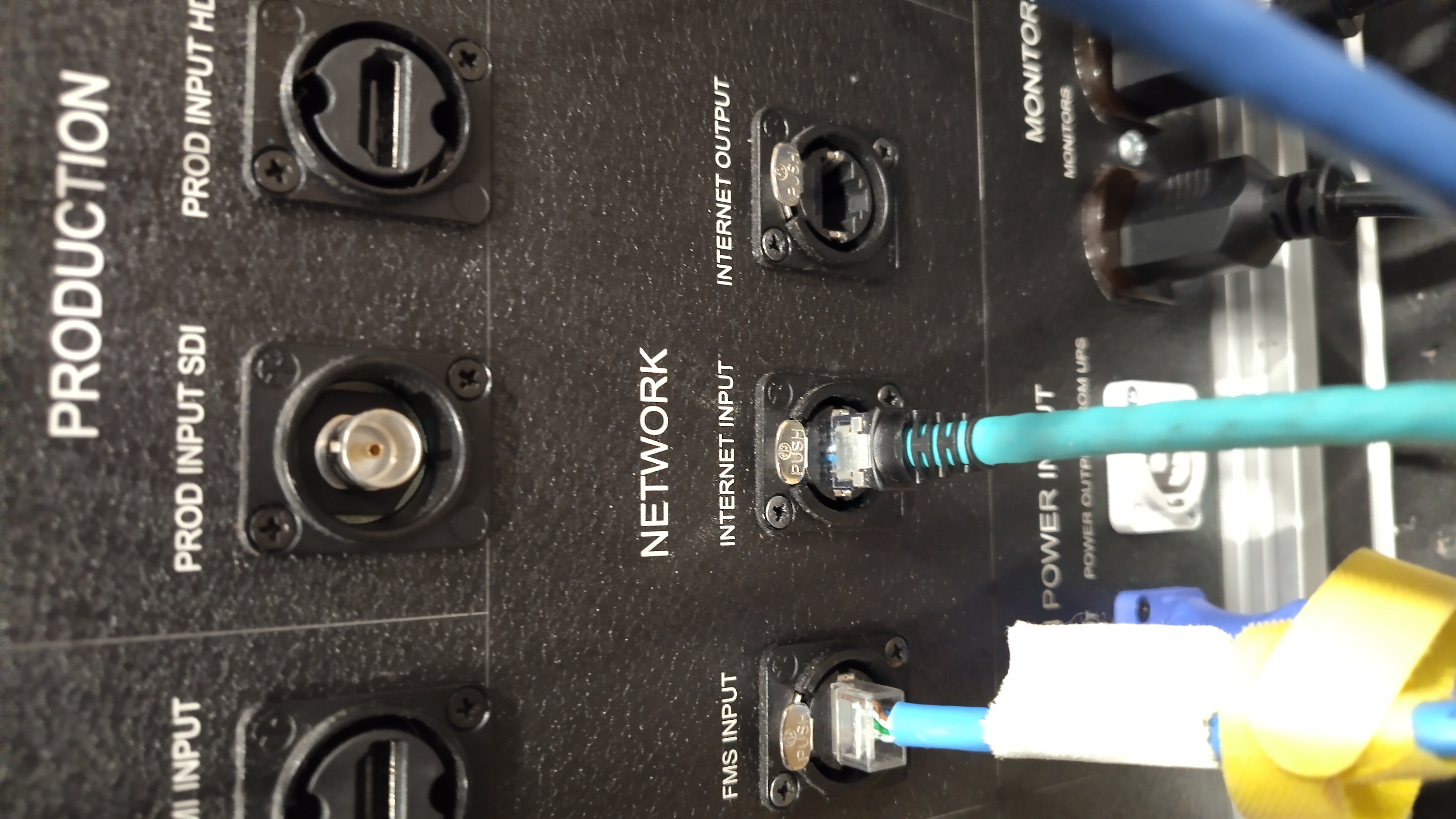

Plug a short Ethernet cable (from AV tote marked Ethernet) from any of the four LAN ports to the “Internet Input” port on the Streaming Unit.
-
Plug a long Ethernet cable (from AV tote marked Ethernet) from a port on the FMS scoring switch to the “FMS In” port on the Streaming Unit.
Stage 1b is complete. Proceed to Stage 1c.
